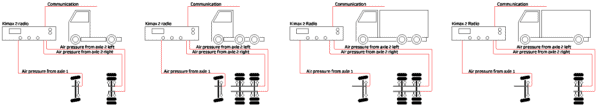

Examples on suspension configuration:
P/N 032000-0131
P/N 031200-0131
P/N 032200-0131
P/N 031220-0131
P/N 032220-0131
Kimax 2 radio air
Price range: 675.00 € through 950.00 €

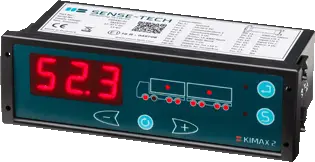

Kimax 2 radio air is a display unit for indicating axle load and gross weight measured at multiple air suspended axles.
The device can work as a stand alone on a single truck or it can cooperate with a Kimax 2 sensor installed on a connected trailer.

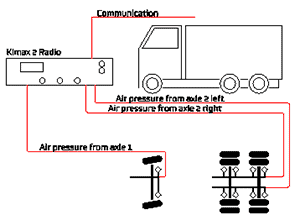

P/N 031200-0131 is a typical configuration for a full air suspended 2-axle truck.
Visit https://www.kimax.com/kimax-2-radio-air/ for learning about other suspension configurations.
| Weight | 1.0 kg |
|---|---|
| Dimensions | N/A |

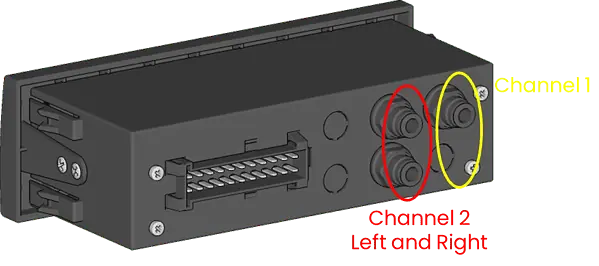

| Variations: | 1×2 air inlet on single channel device, 1+1×2 air inlet on two channels, 2×2 air inlets on two channels, 1+2×2 air inlets on three channels, 3×2 air inlets on three axles |
