Onboard weighing
Kimax 2 radio air
Kimax 2 radio air
1 x radio display
1 x mounting frame
1 x cable set
elbow fitting 6 mm
air pressure throttle dia. 6mm
T-fitting dia. Ø 8mm / 6mm / 8mm
- Current Gross weight for the entire vehicle *
- Gross weight per tractor/trailer *
- Current load on all individual axles
- Payload for the entire vehicle *
- Payload per tractor/trailer *
- Alarm for overload on individual axles
- Alarm for Gross weight
- All weights are displayed in tonnes
Kimax 2 radio fits your DIN slots ....
and offer you a load control of you vehicle, either as a solo instrument including build in air sensors or as a display unit which needs contact to one or more Kimax 2 Sensors through the power line device bus, which can act on the existing electrical system on your vehicle.
- Kimax 2 calculates the current loads from the current air pressure in the suspension system and displays this figure as a three-digit value.
- The Kimax 2 On-Board Load Control is an electronic weighing system which can be used in all vehicles whose axles or axle groups are equipped either with air suspension system or leaf spring suspension system.
- Due to the modular construction, the product is very flexible and can be individually adapted to most vehicle conditions.
... and warns when limits are exceeded
Kimax 2 has two separately adjustable alarm levels. Exceeding alarm level 1 is indicated by a flashing diode for the individual axle which has exceeded its limit.
Alarm 2 switches in an internal electronic “relay” when the total weight for the vehicle is exceeded. The relay signal can be used as ON/OFF input for another unit, for example a tracking GPS or an external lamp.
Kimax 2 helps to achieve economical transportation, avoids fines and simultaneously optimizes the cargo weight.
* Tractor/trailer readings call for a Kimax 2 radio installed in the truck and a Kimax 2 sensor installed on the trailer.
Axle load measurement
Kimax 2 uses the linear interrelationship of the air pressure in the suspension system and the axle load: By using two reference points(empty weight and weight at maximum load) and the current measured air pressure, Kimax 2 calculate the current axle load with an accuracy of 2% of the maximum load for each axle.

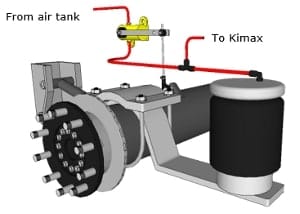

Depending on load of the vehicle, the level valve(s) maintain a constant height of the chassis above the ground surface by regulating the pressure in the air bellows.
Trucks are manufactured with one or two level valve(s) pro axle or axle group. In case of one level valve you get good results by using a Kimax with single air inlet, in case of two level valves, you get most accurate weighing by using a Kimax with a double air inlet.
030000-0140
P/N 030000-0140 Kimax 2 radio without air inlets.
Technical specifications:
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set.
This radio display without sensors is designed to communicate with one or more Kimax 2 sensor.
032000-0131
P/N 032000-0131 Kimax 2 radio 1x2 air inlets.
Technical specifications:
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Air connection | quick release, 6 mm hose |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set, 2 x angle fitting, 2 x air pressure throttles and 2 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
This radio display is designed to communicate with one or more Kimax 2 sensor.
031200-0131
P/N 031200-0131 Kimax 2 radio 1 + 1x2 air
alternative P/N 030000-0140 + P/N 051200-01B1 Kimax 2 sensor 1 + 1x2 air
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp per device |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Air connection | quick release, 6 mm hose |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set, 2 x angle fitting, 2 x air pressure throttles and 2 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
This radio display is designed to communicate with one or more Kimax 2 sensor.
032200-0131
P/N 032200-0131 Kimax 2 radio 2x2 air
alternative P/N 030000-0140 + P/N 052200-01B1 Kimax 2 sensor 2x2 air
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp per device |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Air connection | quick release, 6 mm hose |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set, 4 x angle fitting, 4 x air pressure throttles and 4 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
This radio display is designed to communicate with one or more Kimax 2 sensor.
031220-0131

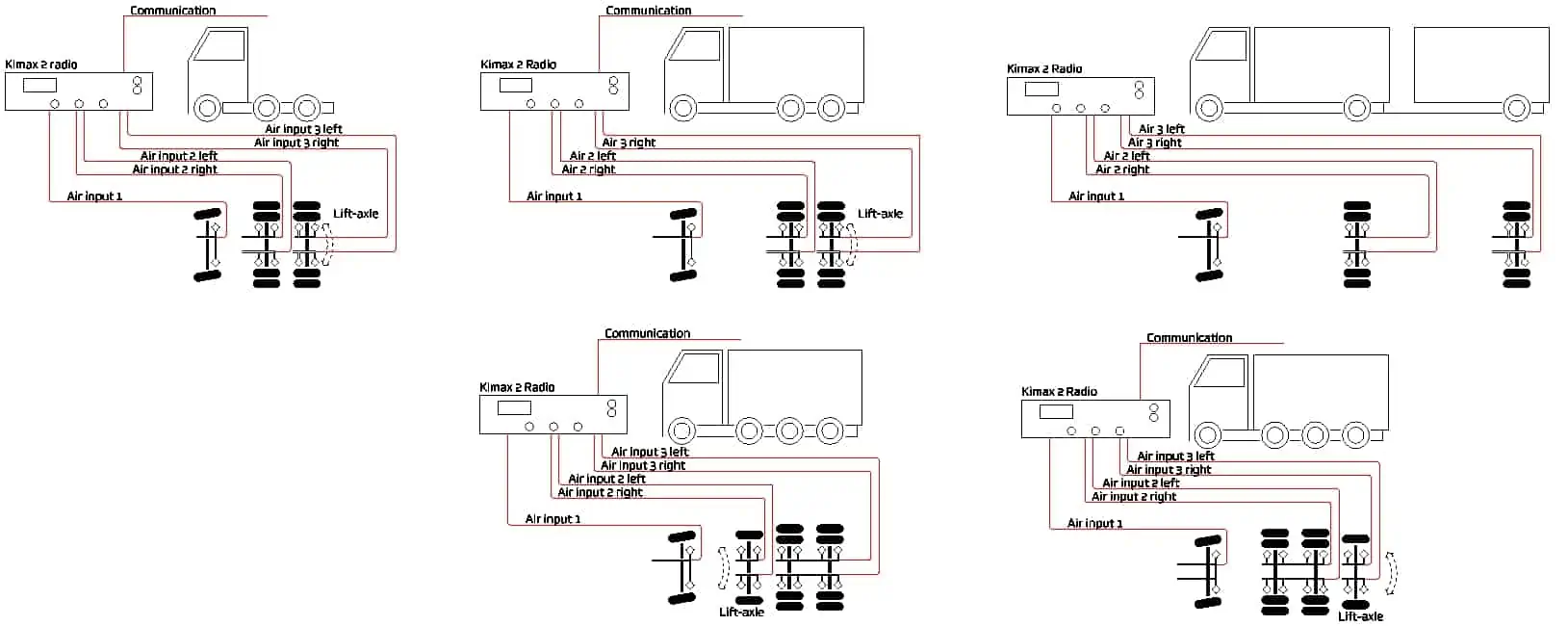

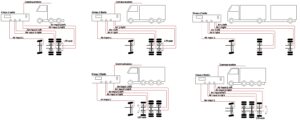

P/N 031220-0131 Kimax 2 radio 1 + 2x2 air
alternative P/N 030000-0140 + P/N 051220-01B1 Kimax 2 sensor 1 + 2x2 air
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp per device |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Air connection | quick release, 6 mm hose |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set, 5 x angle fitting, 5 x air pressure throttles and 5 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
This radio display is designed to communicate with one or more Kimax 2 sensor.
032220-0131

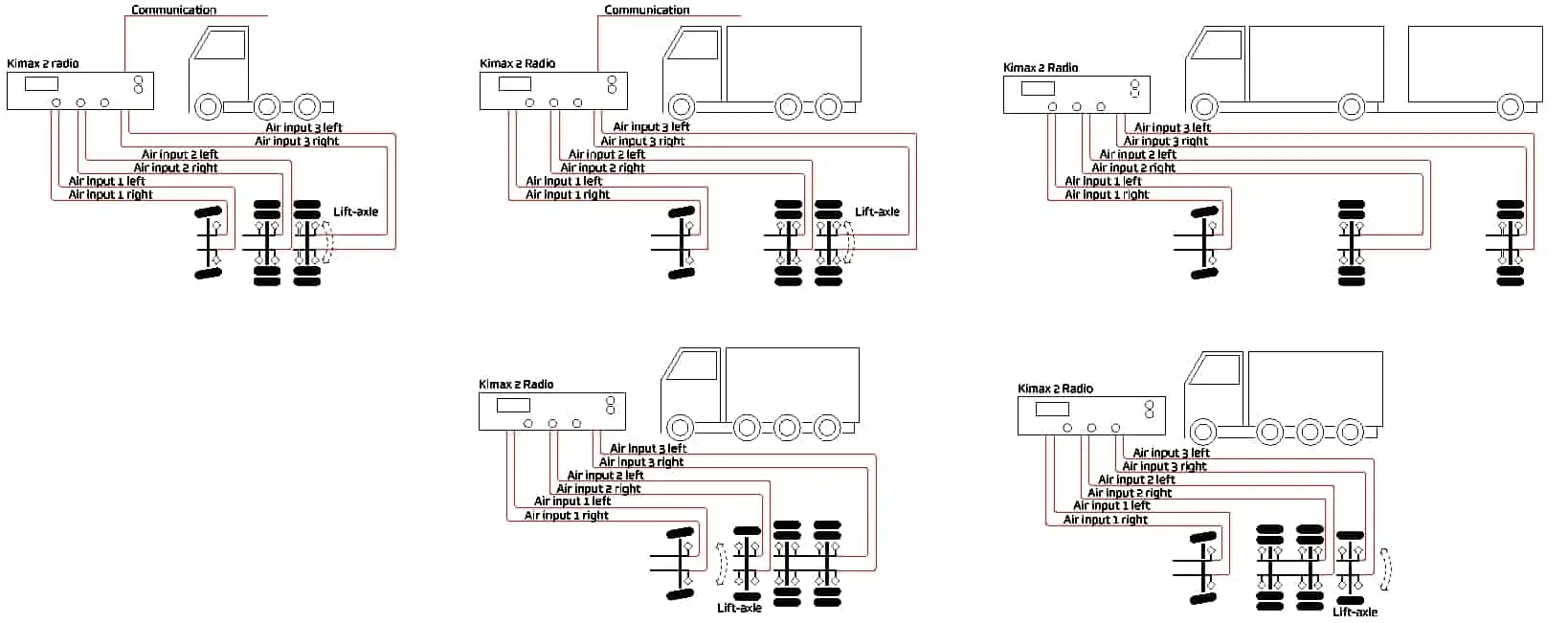

P/N 032220-0131 Kimax 2 radio 3x2 air
alternative P/N 030000-0140 + P/N 051220-01B1 Kimax 2 sensor 1 + 2x2 air
| Supply voltage | 10 - 30 V DC |
| Current consumption | 0,1 Amp per device |
| Alarm 1 | Flashing display |
| Alarm 2 | output open collector NPN max 0,2A / 50 V DC |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Air connection | quick release, 6 mm hose |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
| On-board computer | RS-232 serial |
| Printer | RS-232 serial |
| Device communication | Power line |
| Operating temperature | -25 ºC to +70 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Dimensions | 182 x 53 x 75 mm |
| Weight | approx. 550 g |
| Protective class | IP60 |
| Approvals | E1 & CE |
Radio set include mounting frame and cable set, 6 x angle fitting, 6 x air pressure throttles and 6 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
This radio display is designed to communicate with one or more Kimax 2 sensor.
Air circuits
Kimax 2 radio air is available in several versions, each P/N in above tabs is tailored for a specific No of axles and configuration of suspension system.
On all air suspended vehicles you get optimal accuracy with two independent air inlets for each axle, one for each pneumatic circuits (right and left side), Kimax 2 calculates the current axle load on each axle based on the current air pressure in the air springs.
• When less accuracy is enough for you, one air inlet on each axle or axle group is available too
Optional:
Kimax 2 is exactly as flexible as your vehicle:
Do you have a tractor equipped with air suspension on both front axles and rear axles combined with a lift axle? No problem!
Do you have a truck with 2 front axles equipped with steel springs and two rear axles divided in left hand and right hand air circuits? No
problem!
Do you want to couple a trailer or semitrailer on the above vehicles? No problem!
Do you want to couple a low bed trailer equipped with hydraulic suspension on a tractor equipped with air suspension? No problem!
Do you want to swap from one trailer to another trailer? No problem!
– Individual calibration values are stored in the Kimax unit installed on each vehicle.
Other Kimax products you might want to explore:
Kimax 1 Cabin, Kimax 1 Trailer, Kimax 2 Radio Mixed suspension, Kimax 2 Radio Spring suspension, Kimax 2 Sensor & SG Sensor.
