Loading manometer
Kimax 1 air
Kimax 1 air
Kimax 1 trailer air sensors
1 x display trailer
1 x sturdy stainless steel frame *
elbow fitting 6 mm
air pressure throttle dia. 6mm
T-fitting dia. Ø 8mm / 6mm / 8mm
* optional without stainless steel frame
Loading manometer for trailers/semitrailers

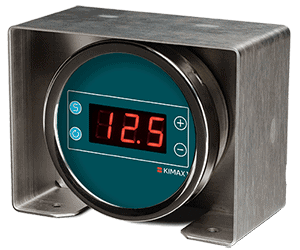

Digital loading manometer intended for use on trailers and semitrailers: The display is designed for mounting in a sturdy, waterproof stainless steel housing direct on the chassis.
The scale you take with you ...
Kimax 1, the axle load gauge for economical and convenient supervision of axle loads on vehicles, trailers and semitrailers equipped with a pneumatic suspension system.
Kimax 1 calculates the current axle load from the current air pressure in the suspension system and displays this figure as a three-digit value.
The pressure sensors are located in the display making a compact unit to avoid external influences on the electronic components and sensors.
... and warns when limits are exceeded
Kimax 1 has two separately adjustable alarm values. Exceeding alarm level 1 is indicated by a flashing display. Exceeding alarm level 2 switches in an internal relay. The relay signal can be used as ON/OFF input for another unit, for example an on-board computer or an external lamp.
Kimax 1 helps to achieve economical transportation, avoid fines and simultaneously optimizes the cargo weight.
Air circuits
On vehicles with two independent pneumatic suspension circuits per axle or axle group, the air pressure is measured for each pneumatic circuit with the 2-sensor version and Kimax 1 calculates the current load from these two values.
On vehicles with one common pneumatic suspension circuit, the axle load meter measure this air pressure and calculate the actual load from this pressure.
The 2 air input meter displays the accurate change in load more rapidly compared to a display with only one air input.
More options:
In case you need multiple axle air suspended on-board weighing, the Kimax 2 system might be a good option for you.
Axle load measurement

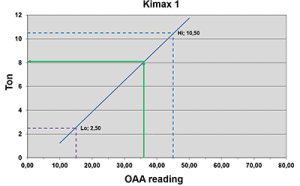

Kimax 1 uses the linear interrelationship of the air pressure in the suspension system and the axle load: By using two reference points(empty weight and weight at maximum load) and the current measured air pressure, Kimax 1 calculate the current axle load with an accuracy of 2% of the maximum load.
Depending on load of the vehicle, the level valve(s) maintain a constant height of the chassis above the ground surface by regulating the pressure in the air bellows. Trailers are manufactured with one or two level valve(s) pro axle or axle group. In case of one level valve you get good results by using a Kimax with single air inlet, in case of two level valves, you get most accurate weighing by using a Kimax with a double air inlet.
P/N 022000-0101
P/N 022000-0101 Kimax 1 trailer 2 air inlets, most precise solution (Former P/N 10002).
P/N 022000-0101 Kimax 1 trailer 2 air inlet
Technical specifications:
| Supply voltage | 10 - 30 V DC |
| Operating temperature | -25 ºC to +70 ºC |
| Current consumption | 0,1 Amp |
| Storage temperature | -40 ºC to +70 ºC |
| Relay output | Normally open 0,5A/30 V DC |
| Dimensions | 175 x 135 x 90 mm |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Weight | approx. 1.650 g |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Protective class | IP65 |
| Air connection | quick release, 6 mm hose |
| Approvals | E1 & CE |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
Trailer set include: 2 x elbow fitting 6mm, 2 x air pressure throttle dia 6mm, 2 x T-fitting dia Ø8 / 6mm / 8mm.
Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
P/N 021000-0101
P/N 021000-0101 Kimax 1 trailer 1 air inlets, most economical solution.
P/N 021000-0101 Kimax 1 trailer 1 air inlet
Technical specifications:
| Supply voltage | 10 - 30 V DC |
| Operating temperature | -25 ºC to +70 ºC |
| Current consumption | 0,1 Amp |
| Storage temperature | -40 ºC to +70 ºC |
| Relay output | Normally open 0,5A/30 V DC |
| Dimensions | 175 x 135 x 90 mm |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Weight | approx. 1.650 g |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Protective class | IP65 |
| Air connection | quick release, 6 mm hose |
| Approvals | E1 & CE |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
Trailer set include: 1 x elbow fitting 6mm, 1 x air pressure throttle dia 6mm, 1 x T-fitting dia Ø8 / 6mm / 8mm.
Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
P/N 021000-9101
P/N 021000-9101 Kimax 1 trailer 1 air inlets, OEM solution.
P/N 021000-9101 Kimax 1 trailer 1 air inlet
Technical specifications:
| Supply voltage | 10 - 30 V DC |
| Operating temperature | -25 ºC to +70 ºC |
| Current consumption | 0,1 Amp |
| Storage temperature | -40 ºC to +70 ºC |
| Relay output | Normally open 0,5A/30 V DC |
| Dimensions | Ø130 x 50 mm |
| Display | Three digits 7-segment LED character height 20,3 mm |
| Weight | approx. 675 g |
| Accuracy | 2% of maximum load at 0 ºC to +50 ºC |
| Protective class | IP65 |
| Air connection | quick release, 6 mm hose |
| Approvals | E1 & CE |
| Maximum pressure | 15,5 bar (225 psi) |
| Operating pressure | range 0-10,5 bar (0-150 psi) |
Trailer set include: 1 x elbow fitting 6mm, 1 x air pressure throttle dia 6mm, 1 x T-fitting dia Ø8 / 6mm / 8mm.
Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.
Display of reading
KIMAX has a three-digit 7-segment LED display. The decimal points can be set at the second or third digit or removed completely depending on weighing range.
Two modes of display can be selected for onboard truck scale:
• Automatic switch off of display after approx. 2 minutes reading (recommended in cabins).
• Continuous display readings (factory setting).
Optional:
RS-232 serial output (option 1) Kimax 1 is available with a serial output in RS-232 format, offering you the displayed value in digital format intended for on-board computers or GPS/tracking units.
Analogue output (option 2) Kimax 1 is available with an analog 0-5 V output corresponding to the displayed value you read on the unit. This output is intended for on-board computers or remote display purpose.
Serial printer output (option 4) Kimax 1 is available with output for most common serial printers.
Cabin version Intended for use in driver’s cab: The Kimax 1 display is supplied with a mount for simple installation on the dashboard.
Other Kimax products you might want to explore:
Kimax 1 Cabin, Kimax 2 radio air, Kimax 2 Radio Mixed suspension, Kimax 2 Radio Spring suspension, Kimax 2 Sensor & SG Sensor.
