Onboard weighing

Kimax 2 sensor air

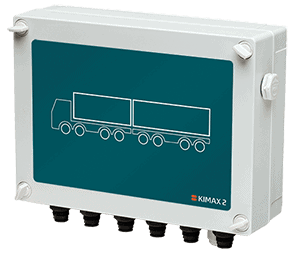

Kimax 2 sensor box for onboard weighing trailers
Sensor set includes:

Kimax 2 sensor air

1 x sensor box, chassis

air pressure throttle dia. 6mm
T-fitting dia. Ø 8mm / 6mm / 8mm

  • Gross weight trailer *
  • Current load on all individual axles
  • Payload per trailer *
  • Alarm for overload on individual axles
  • Alarm for Gross weight



Trailer version - direct on your chassis

Kimax 2 sensor is a slave unit without display intended for communication with Kimax 2 radio or Kimax 2 universal through device bus.

The Kimax 2 On-Board Load Control is an electronic weighing system which can be used in all vehicles whose axles or axle groups are equipped with air suspension system.

Due to the modular construction, the product is very flexible and can be individually adapted to most vehicle conditions.

One tractor can easily shift from one trailer to the next trailer without re-calibrations

Sensor configuration

On all vehicles you get best accuracy with two independent air inlets for each axle, one for each pneumatic circuit (right and left) per axle or axle
group, Kimax 2 calculates the current axle load on each axle from two reference values LO and HI pr axle.

A dual or triple axle group can be measured by one measuring channel, a 2-axle trailer needs a Kimax 2 sensor equipped with two measuring channels

Kimax 2 sensor has two separately adjustable alarm levels

Alarm 1 is indicated by a flashing diode for the individual axle on the connected Kimax 2 radio or Kimax 2 universal display unit.

Alarm 2 which switches in an internal "relay" when the selected** weight for this vehicle is exceeded. The relay signal can be used as ON/OFF input for a warning lamp or another device, for example a tracking GPS or an on-board computer.

* Tractor/trailer readings call for a Kimax 2 radio installed in the truck and a Kimax 2 sensor installed on the trailer.

** Alarm 2 can be set for single axle/axle group weight, payload or gross weight by connecting the Kimax Terminal program to your laptop via USB.

Axle load measurement

Kimax 2 uses the linear interrelationship of the air pressure in the suspension system and the axle load: By using two reference points(empty weight and weight at maximum load) and the current measured air pressure, Kimax 2 calculate the current axle load with an accuracy of 2% of the maximum load for each axle.

Basic operation

Depending on load of the vehicle, the level valve(s) maintain a constant height of the chassis above the ground surface by regulating the pressure in the air bellows.

Trailers are manufactured with one or two level valve(s) pro axle or axle group. In case of one level valve you get good results by using a Kimax with single air inlet, in case of two level valves, you get most accurate weighing by using a Kimax with a double air inlet.

Trailer axle suspension for Kimax

Select your P/N for showing detailed specifications

052000-0151

P/N 052000-0151 Kimax 2 sensor 1x2 air inlets.

Technical specifications:

Supply voltage 10 - 30 V DC
Current consumption 0,1 Amp
Alarm 1 Flashing display, only visible on connected display unit
Alarm 2 output open collector NPN  max 0,2A / 50 V DC
Accuracy 2% of maximum load at 0 ºC to +50 ºC
Air connection quick release, 6 mm hose
Maximum pressure 15,5 bar (225 psi)
Operating pressure range 0-10,5 bar (0-150 psi)
Device communication Power line
Operating temperature -25 ºC to +70 ºC
Storage temperature -40 ºC to +70 ºC
Dimensions 175 x 135 x 90 mm
Weight approx. 1.650 g
Protective class IP65
Approvals E1 & CE

Kimax 2 sensor include 2 x air pressure throttles and 2 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.

This Kimax 2 sensor is designed to communicate with one Kimax 2 radio display.

052200-0151

P/N 052200-0151 Kimax 2 sensor 2x2 air

alternative P/N 052200-01B1

Technical specifications:

Supply voltage 10 - 30 V DC
Current consumption 0,1 Amp
Alarm 1 Flashing display, only visible on connected display unit
Alarm 2 output open collector NPN  max 0,2A / 50 V DC
Accuracy 2% of maximum load at 0 ºC to +50 ºC
Air connection quick release, 6 mm hose
Maximum pressure 15,5 bar (225 psi)
Operating pressure range 0-10,5 bar (0-150 psi)
Device communication Power line
Operating temperature -25 ºC to +70 ºC
Storage temperature -40 ºC to +70 ºC
Dimensions 175 x 135 x 90 mm
Weight approx. 1.650 g
Protective class IP65
Approvals E1 & CE

Radio set include mounting frame and cable set, 4 x angle fitting, 4 x air pressure throttles and 4 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.

This Kimax 2 sensor is designed to communicate with one Kimax 2 radio display.

The "B" type has a 10 m long cable for electrical connection directly from chassis into the cabin.

052220-0151

P/N 052220-0151 Kimax 2 sensor 3x2 air

alternative P/N 052220-01B1

Technical specifications:

Supply voltage 10 - 30 V DC
Current consumption 0,1 Amp
Alarm 1 Flashing display, only visible on connected display unit
Alarm 2 output open collector NPN  max 0,2A / 50 V DC
Accuracy 2% of maximum load at 0 ºC to +50 ºC
Air connection quick release, 6 mm hose
Maximum pressure 15,5 bar (225 psi)
Operating pressure range 0-10,5 bar (0-150 psi)
Device communication Power line
Operating temperature -25 ºC to +70 ºC
Storage temperature -40 ºC to +70 ºC
Dimensions 175 x 135 x 90 mm
Weight approx. 1.650 g
Protective class IP65
Approvals E1 & CE

Radio set include mounting frame and cable set, 6 x angle fitting, 6 x air pressure throttles and 6 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.

This Kimax 2 sensor is designed to communicate with one Kimax 2 radio display.

The "B" type has a 10 m long cable for electrical connection directly from chassis into the cabin.

0522222-0151

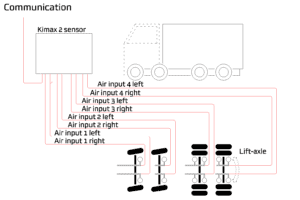

P/N 052222-0151 Kimax 2 sensor 4x2 air

alternative P/N 052222-01B1

Technical specifications:

Supply voltage 10 - 30 V DC
Current consumption 0,1 Amp
Alarm 1 Flashing display, only visible on connected display unit
Alarm 2 output open collector NPN  max 0,2A / 50 V DC
Accuracy 2% of maximum load at 0 ºC to +50 ºC
Air connection quick release, 6 mm hose
Maximum pressure 15,5 bar (225 psi)
Operating pressure range 0-10,5 bar (0-150 psi)
Device communication Power line
Operating temperature -25 ºC to +70 ºC
Storage temperature -40 ºC to +70 ºC
Dimensions 175 x 135 x 90 mm
Weight approx. 1.650 g
Protective class IP65
Approvals E1 & CE

Radio set include mounting frame and cable set, 5 x angle fitting, 5 x air pressure throttles and 5 x T-fitting Ø8 mm - Ø6 mm - Ø8 mm. Other dimensions for T-fitting are available, like 10 mm, 12 mm and 3/8" on request.

This Kimax 2 sensor is designed to communicate with one Kimax 2 radio display.

The "B" type has a 10 m long cable for electrical connection directly from chassis into the cabin.

Air circuits

Kimax 2 sensor air is available in several versions, each P/N in above tabs is tailored for a specific No of axles and configuration of suspension system.

On all air suspended vehicles you get optimal accuracy with two independent air inlets for each axle, one for each pneumatic circuits (right and left side), Kimax 2 calculates the current axle load on each axle based on the current air pressure in the air springs.

• When less accuracy is enough for you, one air inlet on each axle or axle group is available too

Optionals:

Kimax 2 is exactly as flexible as your vehicle:

Do you have a tractor equipped with air suspension on both front axles and rear axles combined with a lift axle? No problem!

Do you have a truck with 2 front axles equipped with steel springs and two rear axles divided in left hand and right hand air circuits? No
problem!

Do you want to couple a trailer or semitrailer on the above vehicles? No problem!

Do you want to couple a low bed trailer equipped with hydraulic suspension on a tractor equipped with air suspension? No problem!

Do you want to swap from one trailer to another trailer? No problem!
– Individual calibration values are stored in the Kimax unit installed on each vehicle.
