375.00 € – 415.00 €

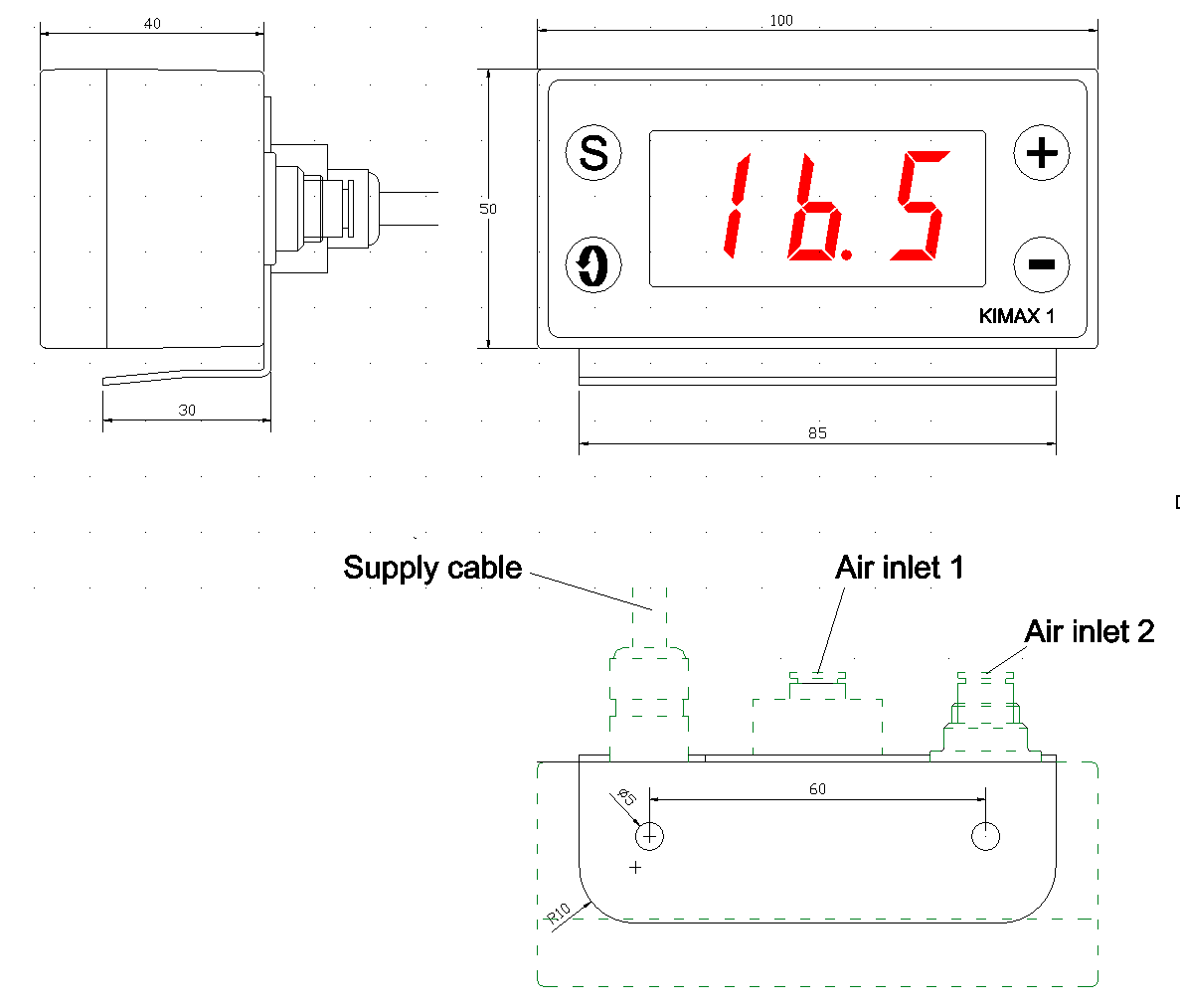

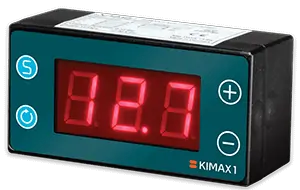

P/N 012000-010x Kimax 1 cabin 2 air inlets
Single channel stand-alone axle load meter with digital read out intended for truck installation
P/N 012000-010x Kimax 1 cabin 2 air inlets
Axle load meter for your truck, read your actual axle load directly in ton on bright digits.

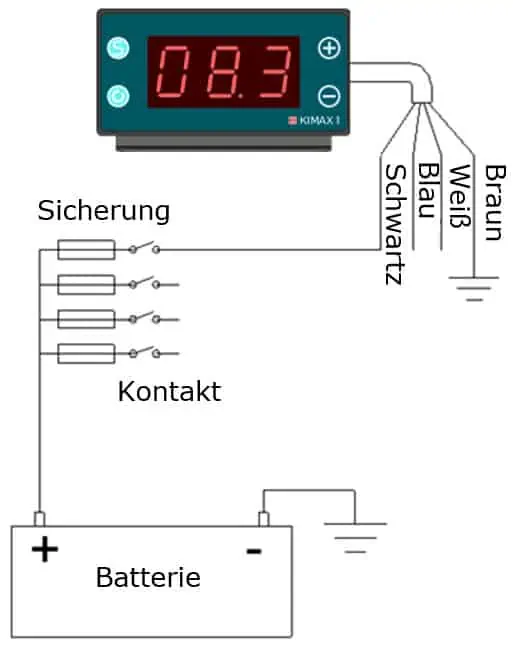

The gauge is easy to install by connecting two air tubes to the air circuit in the suspension system and connect supply cable to + 24 V and 0 V.
For more technical details visit Kimax site and find user manual.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20.0 × 15.0 × 10.0 cm |
| Pneumatic Fitting | 8 mm pneumatic fitting for air tubes, most common, 9 mm pneumatic fitting for air tubes (MAN), 3/8" pneumatic fitting for air tubes (US-Style) |
